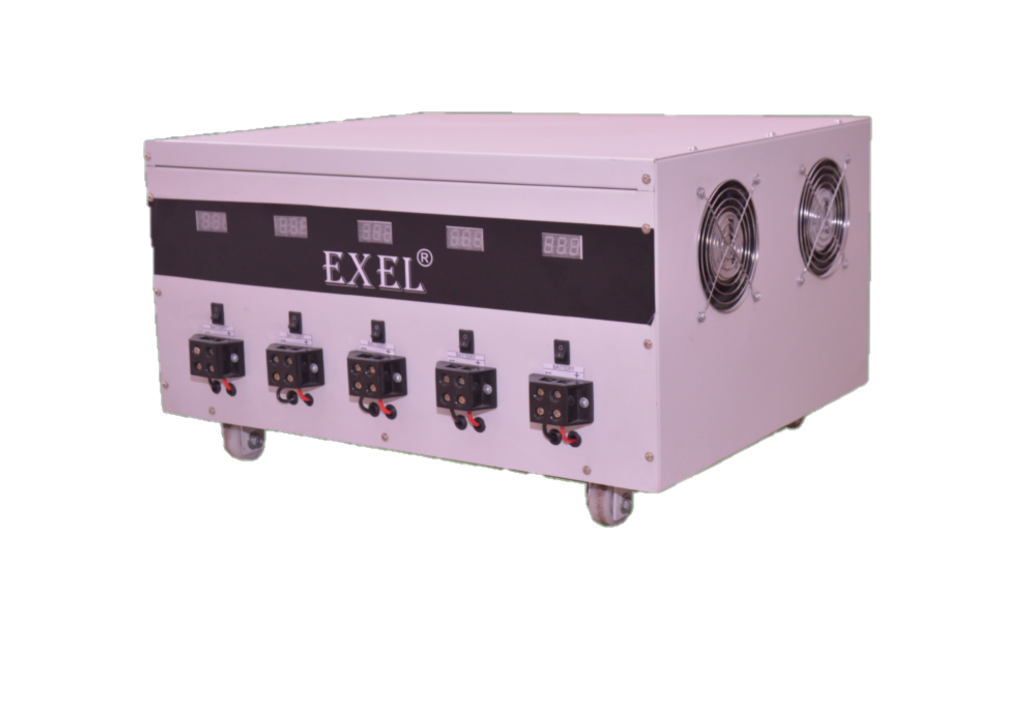

EXEL Transformer based E-Rickshaw charging station ensure easy, fast and optimum charging of the batteries within minimum time. The Constant Voltage and Constant Current of the charger eliminate any possibility of overcharging. As the charger is SCR controlled, the charging current is constant in spite of larger input voltage fluctuations. This charging station has got five independent outputs. Five rickshaws could be connected at a time. As all outputs are independent hence no output channel interferes with each other. This E-Rickshaw charger is having provision for true sharing of current between Electric & Solar charging. When solar is present the electric consumption is reduced.
| Sno | Paramter | Range |
| 1 | Input Power Supply | 180-270 Volts 1-Phase (L,N & E), 50Hz 5% |
| 2 | Output Voltage | 60V ± Adjustable |
| 3 | Output Current | 10 Amps DC five channels |
| 4 | Charging Profile | CV / CC |
| 5 | Mode of Operation | Automatic |
| 6 | Termination of Charging | Automatic |
| 7 | Charger Protection | MCB at INPUT |
| 8 | Metering |
Digital Voltmeter Digital Current Meter |
| 9 | General Specification | Charging equipment is floor mounted type on Wheels |
| 10 | Solar Panel | 300 W X 2NOs. each Channel |
| 11 | Solar Current | True Sharing with AC Current |
| 12 | Priority charging | Solar Current |
